Magpul MBUS® Pro Sight
£84.95
£70.79 (ex. VAT)
-25089-p.jpg?v=158514dd-06d4-41f0-ac2a-fb5eed42fb84)
-25089-p.jpg?v=158514dd-06d4-41f0-ac2a-fb5eed42fb84)
-25089-p.jpg?v=158514dd-06d4-41f0-ac2a-fb5eed42fb84)
-25089-p.jpg?v=158514dd-06d4-41f0-ac2a-fb5eed42fb84)
Stock Status: Sold Out
The MBUS Pro (Magpul® Back-Up Sight) is a corrosion resistant all-steel back-up sighting solution that delivers maximum functionality and strength with minimum bulk at a price that's even smaller than its size.
The dual aperture, windage adjustable Rear and no-tool, elevation adjustable Front excel in all 1913 Picatinny rail mounting applications, including rail-height gas blocks. Positive detents keep the MBUS Pro Front and Rear at standard AR sight height when deployed, and so low when they are stowed that you'll never notice them until they're needed. Narrow width Front is compatible with most IR aiming laser and light installations for the professional user.
Made in U.S.A.
MBUS Pro – Front
FEATURES
SPECIFICATIONS
MBUS Pro – Rear
FEATURES
SPECIFICATIONS
WINDAGE ADJUSTMENT
~0.5 MOA (0.566"/100m) per click with a 14.5" sight radius
~0.4 MOA (0.410"/100m) per click with a 20" sight radius
ELEVATION ADJUSTMENT
~1 MOA (1.131"/100m) per click with a 14.5" sight radius
~0.7 MOA (0.820"/100m) per click with a 20" sight radius
The dual aperture, windage adjustable Rear and no-tool, elevation adjustable Front excel in all 1913 Picatinny rail mounting applications, including rail-height gas blocks. Positive detents keep the MBUS Pro Front and Rear at standard AR sight height when deployed, and so low when they are stowed that you'll never notice them until they're needed. Narrow width Front is compatible with most IR aiming laser and light installations for the professional user.
Made in U.S.A.

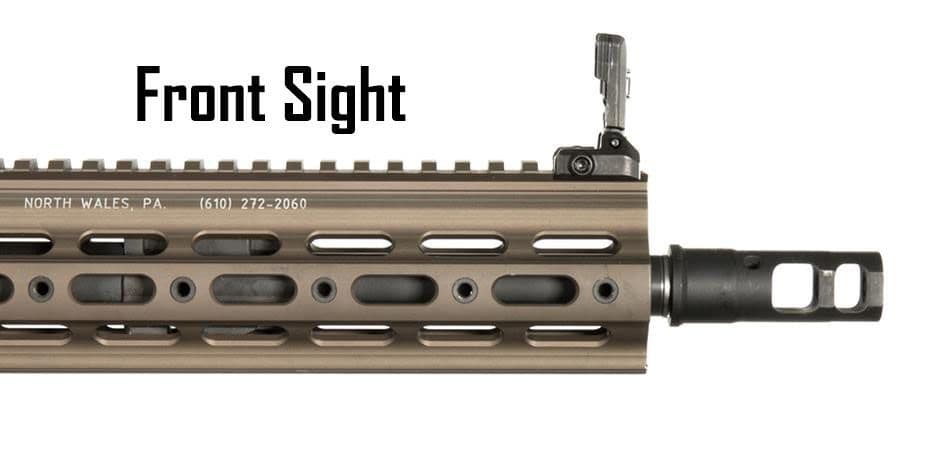

MBUS Pro – Front
FEATURES
- All steel construction
- Steel, rectangular sight post selectable between Match and Standard widths
- —.040” Match width for increased precision
- —.060” Standard width for maximum visibility
- Case hardened and finished with Melonite QPQ™ for extreme resistance to wear and corrosion
- Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail including receiver-height gas blocks
- Elevation adjustment knob – no tools required
- Positive detents in both the up and down positions as well as on the elevation knob
- Standard AR sight height when deployed
SPECIFICATIONS
- Weight, w/ hardware: 1.5 oz.
- Height above rail, stowed: ~0.43" max
- Length, stowed: 1.6"

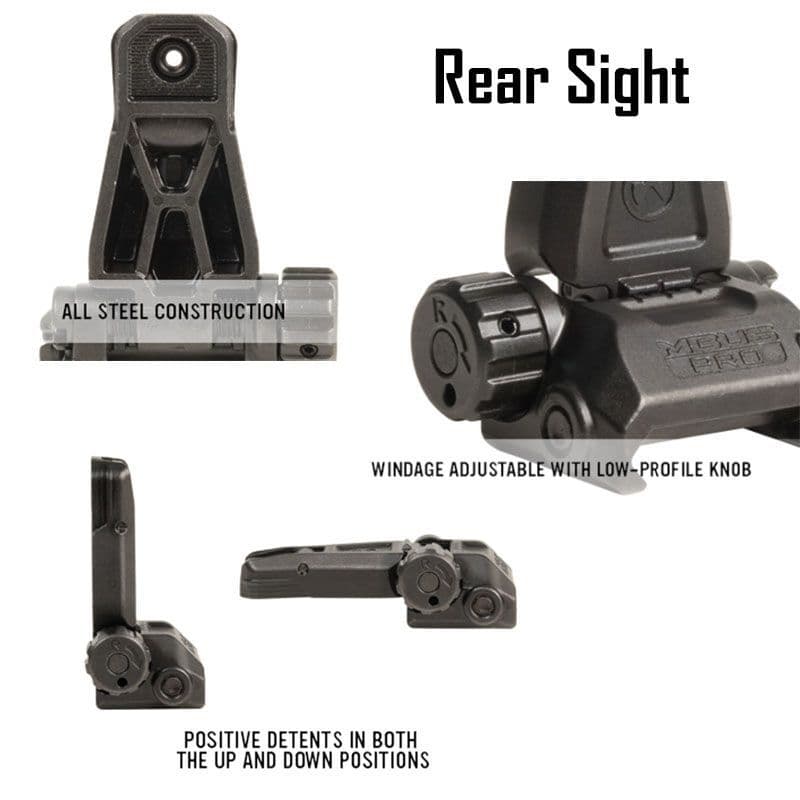

MBUS Pro – Rear
FEATURES
- All steel construction
- Case hardened and finished with Melonite QPQ&trade for extreme resistance to wear and corrosion
- Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail
- Windage adjustable with low-profile knob – no tools required
- Positive detents in both the up and down positions
- Standard AR sight height when deployed
SPECIFICATIONS
- Weight, w/ hardware: 1.80 oz.
- Height above rail, stowed, at mid-point: ~0.37"
- Length, stowed: 2.1"
- Aperture height over rail: 1.41"
- Small aperture dia.: 0.07"
- Large aperture dia.: 0.19"
WINDAGE ADJUSTMENT
~0.5 MOA (0.566"/100m) per click with a 14.5" sight radius
~0.4 MOA (0.410"/100m) per click with a 20" sight radius
ELEVATION ADJUSTMENT
~1 MOA (1.131"/100m) per click with a 14.5" sight radius
~0.7 MOA (0.820"/100m) per click with a 20" sight radius
Brand:
Magpul
Condition:
New
Product Code:
MAG275-BLK
